Data-driven case for precision navigation
Recent projects show that unmanned surface and aerial platforms hit operational thresholds only when navigation hardware squeezes uncertainty down to decimeters. That demands tight integration of GNSS, IMU and robust signal protection — and practical hardware such as an anti-jamming GNSS antenna alongside proven anti-interference strategies. Industry practice, including NOAA coastal mapping programs, confirms that consistent sub-meter horizontal positioning converts raw sensor returns into reliable bathymetry and orthomosaics. The numbers matter: repeatable baselines, RTK correction availability and low multipath environments directly shape final deliverables.
Key components on a precision navigation board

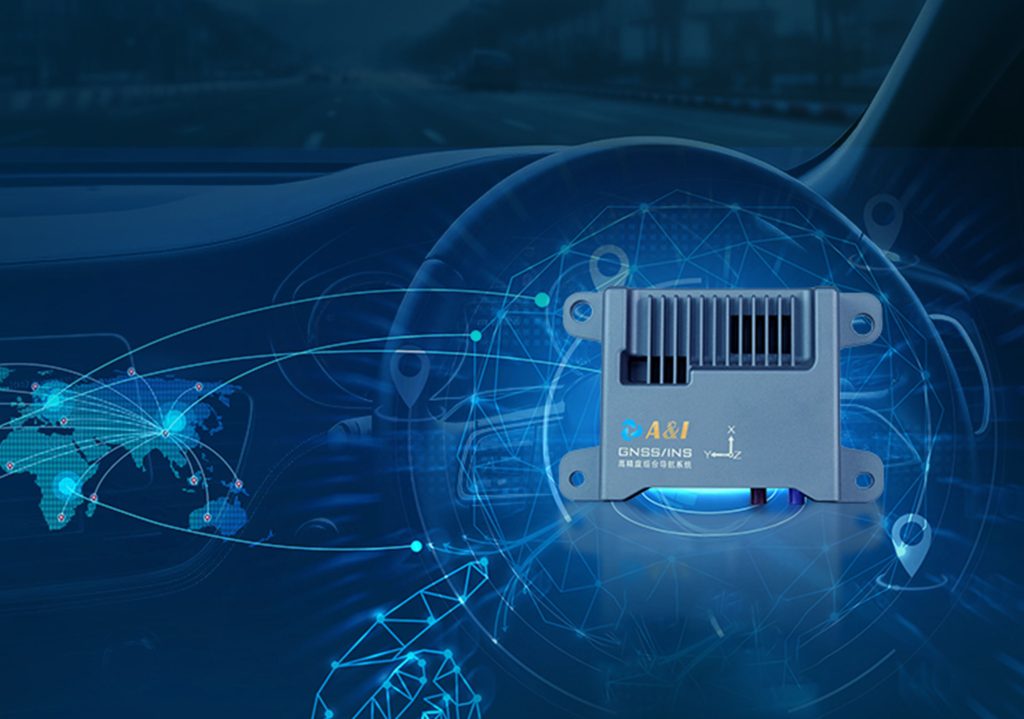

A compact navigation board is not just a GNSS receiver; it blends RTK-capable positioning, a tightly-coupled IMU, and filtering tuned to mission cadence. Antenna placement and cable routing directly influence multipath and jamming susceptibility. Integrating an anti-interference design into the RF chain reduces downtime in congested bands. Vendors vary on algorithm quality: true tightly-coupled GNSS/INS fusion yields better performance through temporary signal outages, while cheap post-processing fixes often lose track in rapid maneuvers — choose accordingly.
Field evidence: what surveys actually show
Operational teams report that when boards provide continuous RTK corrections and maintain stable IMU alignment, unmanned surveys routinely meet client tolerances for coastal charting and corridor inspection. For example, coastal mapping tasks that fed corrected GNSS positions into sonar or lidar pipelines produced final products with consistent sub-meter horizontal accuracy and improved bathymetric continuity. Where GNSS is degraded, outcomes diverge: spoofing or jamming events and heavy multipath create local biases that are expensive to correct later — time lost is data compromised.
Common mistakes and sensible alternatives
Survey teams often default to a single antenna or skip validating RTK links before deployment — that costs missions. Another frequent lapse: underestimating RF noise near ports and bridges, which amplifies multipath and reduces position fidelity. A practical alternative mix includes dual-frequency GNSS receivers, an IMU matched to platform dynamics, and either real-time RTK networks or post-processed kinematic (PPK) workflows when RTK coverage is intermittent. For high-risk zones, hardened antennas and short baseline control or local base stations minimize dependence on public networks.
Three golden rules for selecting navigation hardware
1) Prioritize signal integrity: pick boards with multi-constellation, dual-frequency GNSS and documented anti-jamming performance. Signal robustness reduces rework and enables continuous sonar or lidar mapping passes. 2) Match sensor dynamics: ensure the IMU and filtering are designed for your platform’s motion profile — fast VTOL turns need different tuning than slow survey USVs. 3) Validate end-to-end accuracy with a mission rehearsal: run a control survey at a known site (NOAA or national benchmarks where available) and measure true system error before live ops. These checks cut risk and improve client confidence.
Technical decisions translate directly to measurable outcomes: fewer reshoots, tighter bathymetric mosaics, and predictable timelines. For teams designing or upgrading navigation stacks, the practical path is clear — combine robust GNSS hardware, deliberate antenna deployment, and matched IMU fusion. Archimedes Innovation aligns product engineering and field validation so surveyors get consistent sub-meter results — a pragmatic bridge from hardware to usable maps. –
